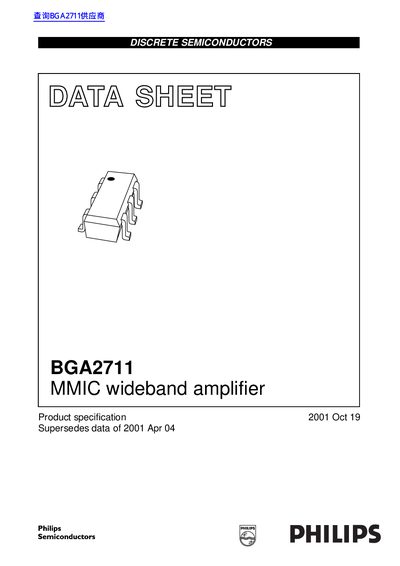

BGA2711 is a MMIC wideband amplifier produced by Philips. It has an internal matching circuit, 50 Ohm input and output impedance, a very wide frequency range, a very flat gain and unconditional stability. It is used in cable systems, LNB IF amplifiers, general purpose and ISM.
The Philips BGA2711 is a silicon monolithic microwave integrated circuit (MMIC) wideband amplifier featuring internal matching to 50 ohms. It operates in a very wide frequency range with very flat gain and is unconditionally stable. The device is supplied in a 6-pin SOT363 SMD plastic package.
| DC supply voltage | 5 V |
|---|---|
| DC supply current | 12.6 mA |
| Insertion power gain (1 GHz) | 13.1 dB |
| Noise figure (1 GHz) | 4.8 dB |
| Saturated load power (1 GHz) | 2.8 dBm |
| Maximum drive power | -10 dBm |
| Operating junction temperature | - 150 °C |
| Bandwidth | 3.6 GHz |
The device is supplied in a 6-pin SOT363 SMD plastic package.
Yes, the device is internally matched to 50 ohms and does not need external matching.
The typical DC supply current is 12.6 mA.
