BGA2022 is a MMIC mixer produced by Philips Semiconductors. It features large frequency range, high isolation, high linearity and high conversion gain. The product is mainly used in wireless systems that require low supply current and high conversion gain and linearity, such as CDMA.

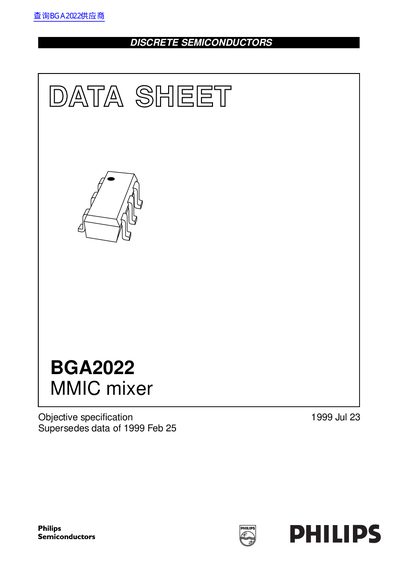

The document describes the Philips BGA2022, an MMIC mixer intended for use on the receiver side of wireless systems requiring high RF conversion gain and linearity at low supply current. It is suitable for CDMA applications across Cellular (900 MHz), PCS (1900 MHz), and WLAN (2.4 GHz) bands.
| Supply voltage (Vs) | 2.7 to 2.85 V |
|---|---|
| Supply current (Is) | -6 mA typical |
| Conversion gain (900 MHz) | -6 dB typical |
| Noise figure (DSB, 900 MHz) | -9 dB typical |
| Input third order intercept point (IP3) | -6 dBm typical |
| LO — RF isolation | -30 dB minimum |
The absolute maximum rating for the supply voltage is 4 V.
