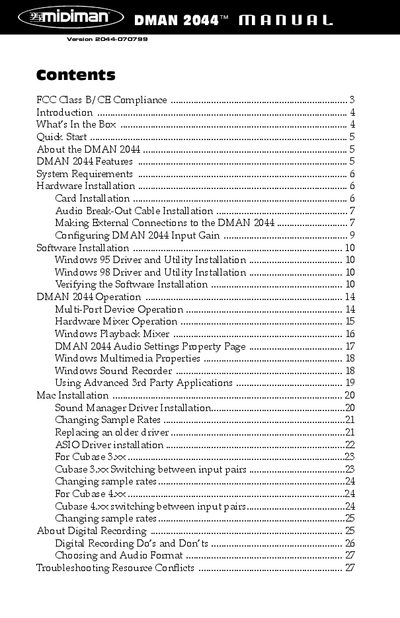

This document describes the features and characteristics of the DMAN 2044, including hardware installation, software installation, operation instructions, and digital recording.
The MIDIMAN DMAN 2044 is a high-performance PCI digital audio card that supports eight channels of analog audio (four inputs and four outputs) with full-duplex operation. It features 20-bit, delta-sigma converters achieving a dynamic range near 99 dB and a frequency response from 20 Hz to 22 kHz.
| Channels | eight channels of analog audio (4 inputs and 4 outputs) |
|---|---|
| Dynamic Range | near 99 dB |
| Frequency Response | 20 Hz to 22 kHz |
| Sampling Rates | 48 kHz and below |
| Input Levels | -10 dB or +4 dB |
| Processor Requirement | 133 Mhz Pentium processor |
The box contains the instruction manual, the DMAN 2044 PCI Audio Card, an audio break-out cable with eight 1/4" connectors, driver disks for Windows 98/95 and Mac, and a warranty registration card.
You need an IBM-PC with a PCI slot, a 133 MHz Pentium processor or faster, a PCI BIOS version 2.00 or greater, and Windows 98/95 with at least 16 MB of RAM.
You must set the jumpers on the DMAN 2044 card to configure each audio input for either -10 dB or +4 dB operation.
