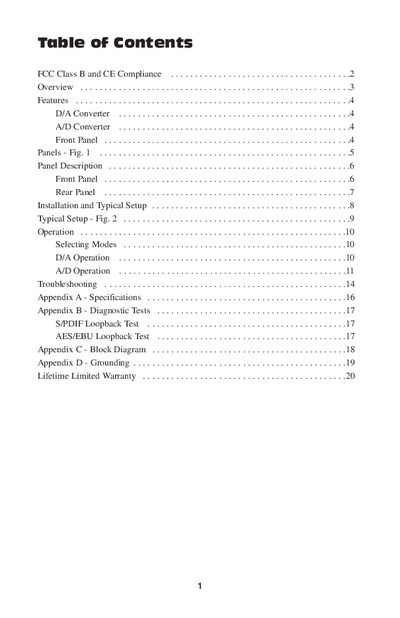

This document provides information about FCC Class B and CE compliance, features of the product, and the functionality of the D/A converter and A/D converter. It also includes descriptions of the front and rear panels, as well as installation and typical setup instructions.
The MIDIMAN Flying Cow is a professional external digital audio converter box featuring high-quality 24-bit A/D and D/A conversion. It supports popular digital audio formats including S/PDIF and AES/EBU and fits into half of a standard 19-inch rack space.
This manual provides instructions on installing the unit in a rack or on a flat surface, connecting analog and digital cables to the front and rear panels, and operating the device. It includes details on selecting modes, adjusting input levels, troubleshooting interference issues, and performing diagnostic tests.
| Dynamic Range (D/A) | 104dB (A-weighted) |
|---|---|
| THD (D/A) | 0.001% @ OdBFS |
| Frequency Response (D/A) | 20Hz-22kHz, -0.5,-0.3dB |
| Dynamic Range (A/D) | 102dB (A-weighted) |
| THD (A/D) | 0.0015% @ OdBFS |
| Frequency Response (A/D) | 20Hz-20kHz, -0.5,-0.3dB |
| Sample Rates (A/D) | 32, 44.1, 48 kHz and "EXT" |
| Power Supply | External 8.5 or 9 volt A/C power supply with 1 amp or greater current capacity |
The unit supports the popular digital audio formats S/PDIF and AES/EBU.
Set the levels as high as possible without making the CLIP LED's light to achieve the greatest dynamic range.
It could result in harmful interference to radio or television reception.
