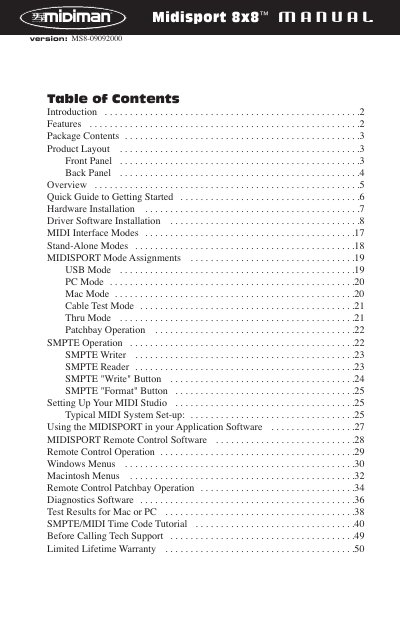

MIDIMAN MIDISPORT 8x8 MIDI Interface User Manual

This document is a user manual for a product, describing its features and characteristics.

Brand: MIDIMAN
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 52
File format: PDF
File size: 644 KB
Published: 04 July, 2012
Updated: 28 September, 2023
MD5 checksum: 584CE2E0BC457EA7ACBB630C953E0E40
PDF: MIDIMAN MIDISPORT 8x8 MIDI Interface User Manual PDF

About this manual

The MIDIMAN MIDISPORT 8x8 is a multi-port MIDI interface designed for USB-equipped PC and Macintosh computers. It features eight independent MIDI input and output ports, supporting up to 128x128 MIDI channels within a professional 19-inch rack-mount chassis. The unit connects via high-speed USB or legacy serial ports and includes MIDI activity indicators for each port.

What's inside

Features
Package Contents
Product Layout
Overview
Quick Guide to Getting Started
Hardware Installation
Driver Software Installation
MIDI Interface Modes
SMPTE Operation
Remote Control Software

Specifications

MIDI Ports	8 independent in / 8 independent out
MIDI Channels	128x128 MIDI channels
Chassis Type	19" single height rack mount
Power Supply	9V DC 500mA
SMPTE Formats	24, 25, 29.97, 30 drop or 30 non-drop

Frequently asked questions

What are the USB requirements for PC?

You must be running Windows 98, and your motherboard must support USB or you need a PCI-to-USB host adapter.

What Mac OS versions are compatible?

The unit works with Mac OS 8.6 and above.

What is the function of the MIDI Reset button?

It acts as a "panic button" sending an "all notes off" and "all controllers off" messages.
