midiman Portman 4x4 MANUAL Version P2x4: 060299

This document is a user manual for portman 2x4™. It introduces the hardware installation, software installation, MIDI application setup, basic troubleshooting, etc.

Brand: MIDIMAN
Document type: User Manual
Language: English
Pages: 20
File format: PDF
File size: 106 KB
Published: 04 July, 2012
Updated: 30 September, 2023
Model: PORTMAN 4x4
MD5 checksum: CE22FE9A8FF543A52553F6B50AC0996B
PDF: midiman Portman 4x4 MANUAL Version P2x4: 060299 PDF

About this manual

The MIDIMAN Portman 2x4 is a professional 2-input/4-output MIDI interface designed to connect externally to the parallel printer port on IBM or compatible PC computers. It features two completely independent MIDI inputs and four MIDI outputs, making it suitable for connecting multiple sound modules or keyboards to a computer sequencer.

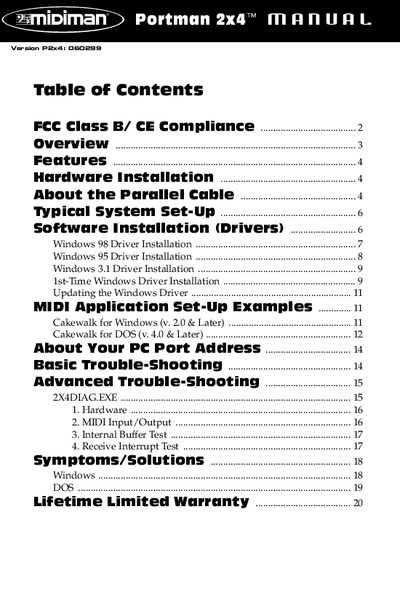

What's inside

FCC Class B / CE Compliance
Hardware Installation
About the Parallel Cable
Software Installation (Drivers)
Typical System Set-Up
Windows 98 Driver Installation
Windows 95 Driver Installation
Basic Trouble-Shooting

Specifications

MIDI Inputs	2 completely independent MIDI Ins
MIDI Outputs	4 MIDI Outs
Connection Type	Parallel printer port

Frequently asked questions

What cable is required for installation?

A standard fully Centronics-compatible PC printer cable with all 25 wires present and connected according to specification.

Which Windows drivers are included?

Drivers for Windows (Windows 98/95) and Cakewalk for DOS.
