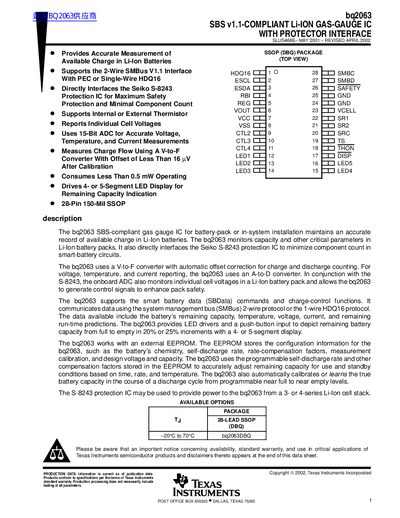

The bq2063 SBS v1.1-compliant Li-Ion gas gauge IC provides accurate measurement of available charge in Li-Ion batteries. It supports the 2-Wire SMBus V1.1 interface with PEC or Single-Wire HDQ16. It directly interfaces the Seiko S-8243 protection IC for maximum safety protection and minimal component count. It supports internal or external thermistor and reports individual cell voltages. It uses a 15-Bit ADC for accurate voltage, temperature, and current measurements. It consumes less than 0.5 mW operating power and drives a 4- or 5-segment LED display for remaining capacity indication.
The bq2063 is an SBS v1.1-compliant gas-gauge IC designed for Li-Ion battery packs. It maintains an accurate record of available charge and directly interfaces with the Seiko S-8243 protection IC to minimize component count. The device supports both 2-wire SMBus and 1-wire HDQ16 communication protocols.
| Supply Voltage | 2.7 V to 3.7 V |
|---|---|
| Package Type | 28-Lead SSOP |
| SMBus Operating Frequency | 10 kHz to 100 kHz |
The device operates within a free-air temperature range of -20°C to 70°C.
