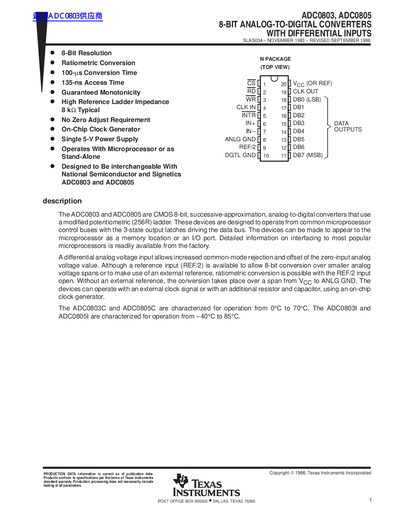

The ADC0803 and ADC0805 are CMOS 8-bit successive-approximation analog-to-digital converters that use a modified potentiometric (256R) ladder. They feature 8-bit resolution, ratiometric conversion, 100-µs conversion time, 135-ns access time, guaranteed monotonicity, high reference ladder impedance, no zero adjust requirement, on-chip clock generator, single 5-V power supply, and can operate with a microprocessor or as a stand-alone device.
The document describes the ADC0803 and ADC0805, which are CMOS 8-bit successive-approximation analog-to-digital converters featuring a modified potentiometric ladder. These devices utilize differential analog voltage inputs to increase common-mode rejection and allow operation from a single 5-V power supply.
| Resolution | 8-bit |
|---|---|
| Conversion Time | 100-115 ns |
| Access Time | 135 ns |
| Supply Voltage | 4.5 V to 6.3 V |
| Operating Temperature (I) | -40°C to 85°C |
The devices provide an 8-bit resolution.
Yes, they are designed to operate with a single 5-V power supply.
