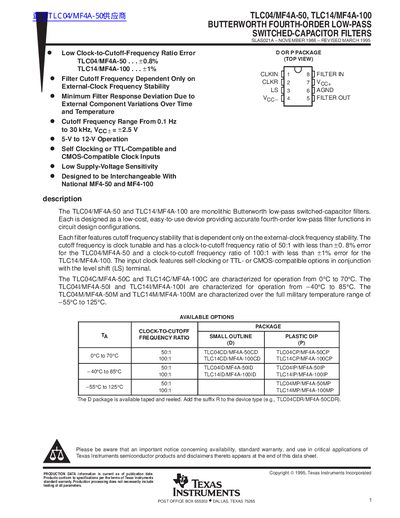

The TLC04/MF4A-50 and TLC14/MF4A-100 are monolithic Butterworth low-pass switched-capacitor filters. Each is designed as a low-cost, easy-to-use device providing accurate fourth-order low-pass filter functions in circuit design configurations. Each filter features cutoff frequency stability that is dependent only on the external-clock frequency stability. The cutoff frequency is clock tunable and has a clock-to-cutoff frequency ratio of 50:1 with less than ±0. 8% error for the TLC04/MF4A-50 and a clock-to-cutoff frequency ratio of 100:1 with less than ±1% error for the TLC14/MF4A-100. The input clock features self-clocking or TTL- or CMOS-compatible options in conjunction with the level shift (LS) terminal.
The TLC04/MF4A-50 and TLC14/MF4A-100 are monolithic Butterworth low-pass switched-capacitor filters designed as low-cost, easy-to-use devices. They provide accurate fourth-order low-pass filter functions where the cutoff frequency stability depends only on the external clock frequency stability. The cutoff frequency is clock tunable with ratios of 50:1 for the TLC04/MF4A-50 and 100:1 for the TLC14/MF4A-100, featuring less than +0.8% and +1% error respectively.
| Filter Type | Butterworth fourth-order low-pass |
|---|---|
| Clock-to-Cutoff Frequency Ratio | 50:1 (TLC04/MF4A-50), 100:1 (TLC14/MF4A-100) |
| Cutoff Frequency Range | 0.1 Hz to 30 kHz |
| Supply Voltage Operation | 5-V to 12-V |
| Operating Temperature Range (Commercial) | 0°C to 70°C |
| Operating Temperature Range (Industrial) | -40°C to 85°C |
| Operating Temperature Range (Military) | -55°C to 125°C |
Yes, they are designed to be interchangeable with National MF4-50 and MF4-100.
The input clock features self-clocking or TTL-compatible and CMOS-compatible options.
