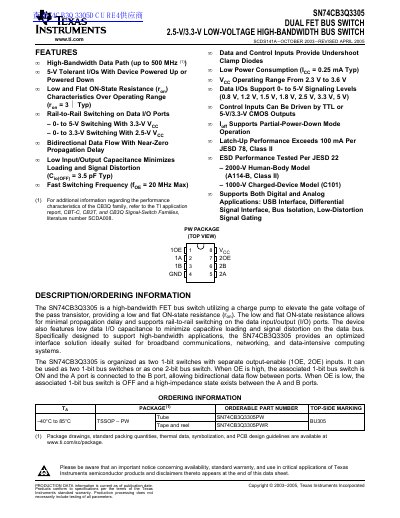

The SN74CB3Q3305 is a dual FET bus switch with 2.5V/3.3V low voltage and high bandwidth characteristics. It features a high bandwidth data path, low power consumption, 5V tolerant I/Os, and low and flat ON-state resistance.
The SN74CB3Q3305 is a high-bandwidth FET bus switch designed for broadband communications and data-intensive computing systems. It utilizes a charge pump to elevate gate voltage, providing low and flat ON-state resistance for minimal propagation delay. The device features low input/output capacitance to reduce signal distortion and supports 0- to 5-V signaling levels.
| Supply Voltage Range | 2.3 V to 3.6 V |
|---|---|
| Operating Temperature Range | -40°C to 85°C |
| Maximum Switching Frequency | 20 MHz |
| ESD Performance (Human-Body Model) | 2000-V |
| Data I/O Voltage Range | 0 to 5.5 V |
The maximum switching frequency for the control input is 20 MHz.
Yes, the data I/Os support 0- to 5-V signaling levels.
