TLC04 is a voltage amplifier that provides high gain and low input bias current.

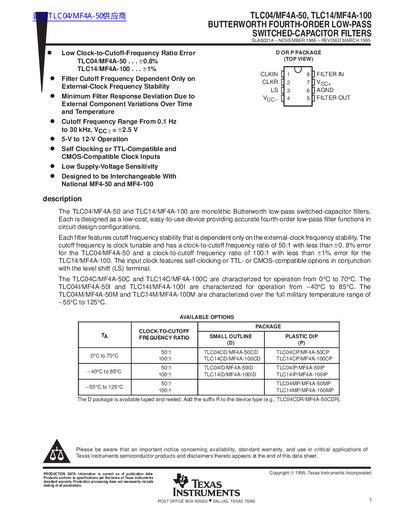

The TLC04/MF4A-50 and TLC14/MF4A-100 are monolithic Butterworth low-pass switched-capacitor filters designed as low-cost, easy-to-use devices. They provide accurate fourth-order low-pass filter functions where the cutoff frequency stability depends only on the external clock frequency stability.
| Filter Type | Butterworth fourth-order low-pass switched-capacitor filters |
|---|---|
| Clock-to-Cutoff Frequency Ratio Error (TLC04/MF4A-50) | < +0.8% |
| Clock-to-Cutoff Frequency Ratio Error (TLC14/MF4A-100) | < +1% |
| Cutoff Frequency Range | 0.1 Hz to 30 kHz |
| Supply Voltage Operation | 5-V to 12-V |
The clock-to-cutoff frequency ratio is 50:1.
The clock-to-cutoff frequency ratio is 100:1.
Yes, they are designed to be interchangeable with National MF4-50 and MF4-100.
