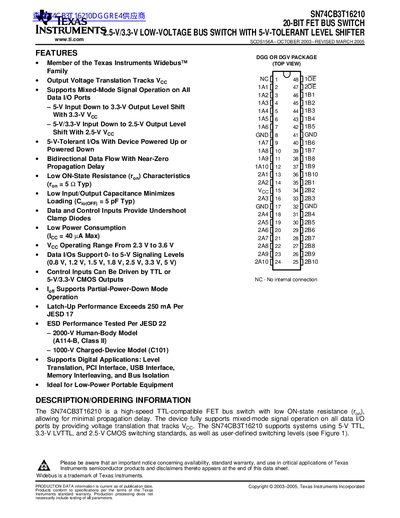

SN74CB3T16210 is a 20-bit FET bus switch from TI that supports 5V and 3.3V voltages and has a 5V-tolerant level shifter.
The SN74CB3T16210 is a high-speed TTL-compatible FET bus switch designed for low-voltage applications. It features a 20-bit capacity organized as two 10-bit bus switches with separate output-enable inputs, allowing for bidirectional data flow between ports when enabled. The device supports mixed-mode signal operation by providing voltage translation that tracks the supply voltage (V CC), facilitating communication between systems using different voltage standards such as 5-V TTL, 3.3-V LVTTL, and 2.5-V CMOS.
| Supply Voltage Range | 2.3 V to 3.6 V |
|---|---|
| Operating Temperature Range | -40°C to 85°C |
| ON-State Resistance | 5 Ω Typ |
| Output Capacitance (OFF) | 5 pF Typ |
| Supply Current (Max) | 40 µA |
| ESD Protection (HBM) | 2000-V |
| ESD Protection (CDM) | 1000-V |
The device supports 5-V TTL, 3.3-V LVTTL, and 2.5-V CMOS switching standards, as well as user-defined switching levels.
It is organized as two 10-bit bus switches with separate output-enable inputs, which can be used as two 10-bit switches or one 20-bit switch.
The typical ON-state resistance is 5 Ω.
