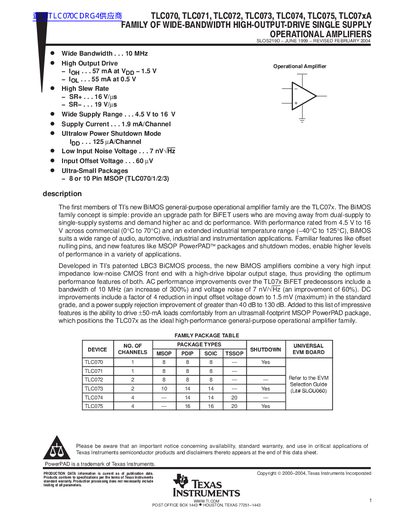

Datasheet for TI TLC070/1/2/3 operational amplifiers covering specifications, ratings and pinouts.
The Texas Instruments TLC07x family are BiMOS general‑purpose operational amplifiers available in MSOP, DIP and other packages. They support single‑supply operation from 4.5 V to 16 V and offer high‑speed, low‑noise performance for audio, automotive and instrumentation applications.
The document provides absolute maximum ratings, detailed electrical characteristics at 5 V and 12 V supply, package pinout diagrams, and typical performance parameters such as slew rate, gain‑bandwidth product and output drive capability.
| Wide Bandwidth | 10 MHz |
|---|---|
| High Output Drive | 57 mA at VDD = 1.5 V |
| Supply Voltage Range | 4.5 V to 16 V |
| Input Offset Voltage | 60 µV |
| Input Noise Voltage | 7 nV/√Hz |
The device operates from 4.5 V up to 16 V.
The typical input offset voltage is 60 µV.
The input noise voltage density is 7 nV/√Hz.
