The LCX16244 is a low voltage 16-bit buffer/line driver with 5V tolerant inputs and outputs. It is designed to be used as a memory and address driver, clock driver, or bus oriented transmitter/receiver.

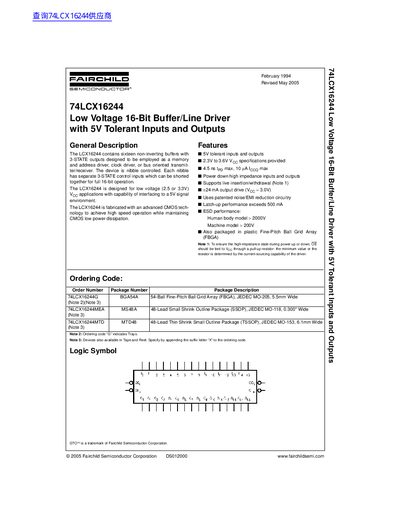

The 74LCX16244 is a low voltage 16-bit buffer/line driver containing sixteen non-inverting buffers with 3-STATE outputs. It is designed for 2.5V or 3.3V applications but features 5V tolerant inputs and outputs, allowing interfacing with 5V signal environments. The device is nibble controlled, with separate 3-STATE control inputs for each group of four bits that can be shorted together for full 16-bit operation.
| Supply Voltage | 2.5V to 3.6V |
|---|---|
| Propagation Delay (Max) | 4.5 ns |
| Output Drive Current | 24 mA |
| ESD Performance (Human Body) | 2000V |
| ESD Performance (Machine) | 200V |
| Input Voltage Tolerance | 5V |
| Number of Buffers | 16 |
The device operates with a supply voltage (VCC) between 2.3V and 3.6V.
Yes, it has 5V tolerant inputs and outputs, allowing it to interface with a 5V signal environment.
The maximum output drive current is 24 mA when VCC is 3.0V.
