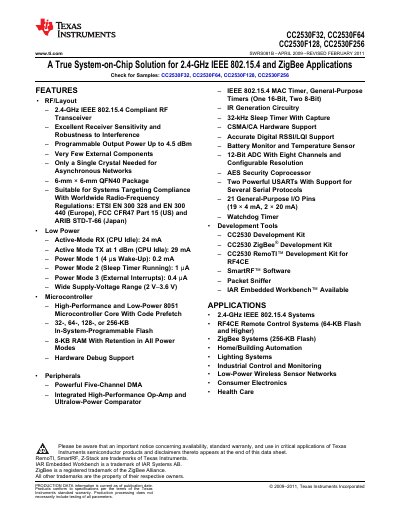

CC2530F32, CC2530F64, CC2530F128, and CC2530F256 are true system-on-chip solutions for 2.4GHz IEEE 802.15.4 and ZigBee applications. They feature IEEE 802.15.4 MAC timer, general-purpose timers, IR generation circuitry, 2.4GHz IEEE 802.15.4 compliant RF transceiver, etc. They also support CSMA/CA hardware, accurate digital RSSI/LQI support, programmable output power, battery monitor, temperature sensor, etc. The products are suitable for systems targeting compliance with ETSI EN 300 328 and EN 300 440 (Europe), FCC CFR47 Part 15 (US), and ARIB STD-T-66 (Japan) global radio-frequency regulations.
The document describes the CC2530 as a true system-on-chip (SoC) solution combining an enhanced 8051 microcontroller with a 2.4-GHz IEEE 802.15.4 compliant RF transceiver. It is designed for low-power wireless sensor networks, home automation, and industrial control applications.
The chip comes in four flash memory versions: CC2530F32 (32 KB), CC2530F64 (64 KB), CC2530F128 (128 KB), and CC2530F256 (256 KB). Key features include a 32-kHz sleep timer, AESSecurity coprocessor, 12-bit ADC, and support for multiple serial protocols via two USARTs.
| Supply Voltage Range | 2 V to 3.6 V |
|---|---|
| Operating Temperature Range | -40°C to 125°C |
| Flash Memory Sizes | 32 KB, 64 KB, 128 KB, or 256 KB |
| RF Frequency Range | 2394 MHz to 2507 MHz |
| Radio Baud Rate | 250 kbps |
| Receiver Sensitivity (Typical) | -97 dBm |
The CC2530 is available in four versions with 32 KB, 64 KB, 128 KB, or 256 KB of flash memory.
Yes, it is a compliant RF transceiver for 2.4-GHz IEEE 802.15.4 applications.
The chip supports programmable output power up to 4.5 dBm.
