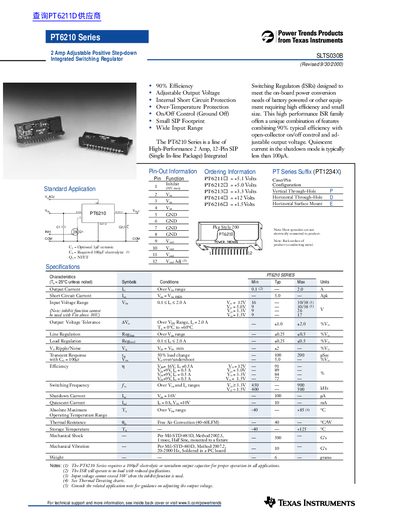

The PT6210 Series is a line of High-Performance 2 Amp, 12-Pin SIP (Single In-line Package) Integrated Switching Regulators (ISRs) designed to meet the on-board power conversion needs of battery powered or other equipment requiring high efficiency and small size. This high performance ISR family offers a unique combination of features combining 90% typical efficiency with open-collector on/off control and adjustable output voltage. Quiescent current in the shutdown mode is typically less than 100µA.
The PT6210 Series is a line of high-performance 2 Amp, 12-Pin SIP (Single In-line Package) integrated switching regulators designed to meet the on-board power conversion needs of battery-powered equipment. The series offers a unique combination of features, including 90% typical efficiency, open-collector on/off control, and adjustable output voltage. Quiescent current in the shutdown mode is typically less than 100pA.
| Short Circuit Current | 5.0 Apk |
|---|---|
| Input Voltage Range | 0.15 to 15.2 V |
| Operating Temperature Range | -40 to +85 °C |
| Efficiency | 90% typical |
The quiescent current in the shutdown mode is typically less than 100pA.
Available output voltages include +5.1V, +5.0V, +3.3V, +12V, and +15V.
