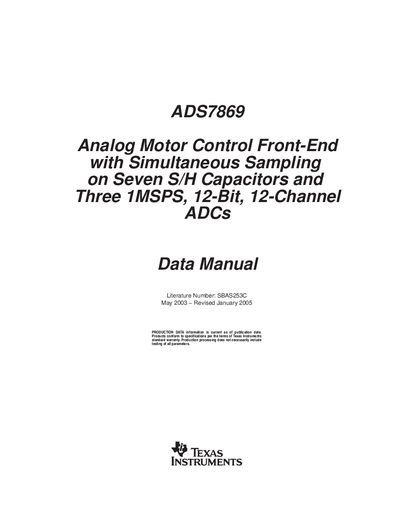

Texas Instruments ADS7869 Data Manual

ADS7869 is an analog motor control front-end with simultaneous sampling on seven S/H capacitors and three 1MSPS, 12-bit, 12-channel ADCs.

Brand: Texas Instruments
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 66
File format: PDF
File size: 1 MB
Published: 02 July, 2012
Updated: 29 September, 2023
Model: ADS7869
MD5 checksum: 41762B9A9427B5A3F4EF2C5B438D370B
PDF: Texas Instruments ADS7869 Data Manual PDF

About this manual

This document is a data manual for the ADS7869, an integrated circuit designed as an Analog Motor Control Front-End. The device features simultaneous sampling on seven sample-and-hold capacitors and includes three 1MSPS, 12-bit, 12-channel Analog-to-Digital Converters (ADCs). It is intended for applications requiring precise motor control and signal processing.

What's inside

Features
Applications
Description
Ordering Information
Absolute Maximum Ratings
Recommended Operating Conditions
Electrical Characteristics
Pinout Drawing
Functional Block Diagram
Analog Section

Specifications

ADC Resolution	12-bit
ADC Sampling Rate	1MSPS
Number of ADC Channels	12-Channel
Sample-and-Hold Capacitors	Seven
Document Literature Number	SBAS253C

Frequently asked questions

What is the primary function of the ADS7869?

The device serves as an Analog Motor Control Front-End that includes simultaneous sampling on seven sample-and-hold capacitors and three 1MSPS, 12-bit, 12-channel ADCs.
