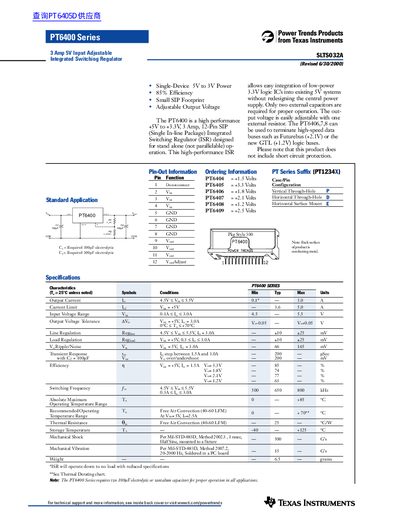

The PT6400 is a high performance +5V to +3.3V, 3 Amp, 12-Pin SIP (Single In-line Package) Integrated Switching Regulator (ISR) designed for stand alone (not parallelable) op- eration.
The PT6400 Series is a high-performance Integrated Switching Regulator (ISR) designed for standalone operation. It converts a +5V input to various lower voltages ranging from +1.2V to +3.3V with an output current capability of up to 3.0A. The device features a small SIP footprint and requires only two external capacitors for proper operation.
| Output Current | 3.0 A |
|---|---|
| Input Voltage Range | 4.5 V to 5.5 V |
| Efficiency (Vo=3.3V) | 85 % |
| Operating Temperature Range | -40 to +70 °C |
No, this product does not include short circuit protection.
Only two external capacitors are required for proper operation.
