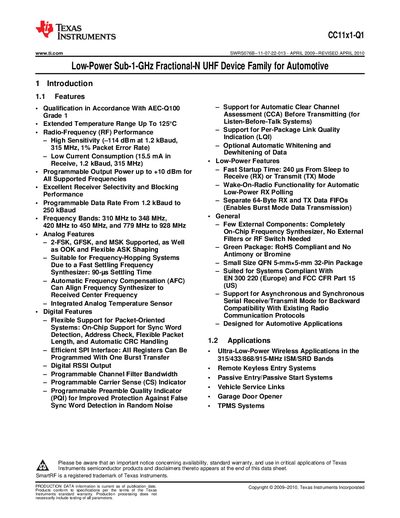

This document introduces a low-power Sub-1-GHz fractional-N UHF device family for automotive applications. The product features support for automatic clear channel assessment, extended temperature range, low current consumption, fast startup time, programmable output power, and more.
The Texas Instruments CC11x1-Q1 device family is designed for very low-power wireless applications in the Industrial, Scientific, and Medical (ISM) and Short Range Device (SRD) frequency bands. The family includes UHF transceivers, receivers, and transmitters with qualification in accordance with AEC-Q100 Grade 1 and an extended temperature range up to 125°C.
The devices integrate a highly configurable baseband modem supporting various modulation formats such as 2-FSK, GFSK, MSK, OOK, and ASK. Key features include programmable output power up to +10 dBm, a data rate from 1.2 kBaud to 250 kBaud, and support for frequency bands ranging from 310 MHz to 928 MHz. The family offers extensive hardware support for packet handling, burst transmissions, clear channel assessment, and link quality indication via an SPI interface.
| Qualification Standard | AEC-Q100 Grade 1 |
|---|---|
| Operating Temperature Range | Up to 125°C |
| Receiver Sensitivity | -114 dBm |
| Receive Current Consumption | 15.5 mA |
| Maximum Output Power | +10 dBm |
| Data Rate Range | 1.2 kBaud to 250 kBaud |
| Supported Frequency Bands | 310 MHz to 348 MHz, 420 MHz to 450 MHz, and 779 MHz to 928 MHz |
| Package Type | QFN 5mmx5mm 32-Pin |
| Startup Time | 240 us |
The devices are qualified in accordance with AEC-Q100 Grade 1.
The family supports an extended temperature range up to 125°C.
The receiver sensitivity is -114 dBm at 1.2 kBaud, 315 MHz, with a 1% packet error rate.
The devices support programmable output power up to +10 dBm for all supported frequencies.
