PT6100 series is a line of high-performance 1 Amp, 12-Pin SIP (Single In-line Package) integrated switching regulators (ISRs) designed to meet the on-board power conversion needs of battery powered or other equipment requiring high efficiency and small size. This high performance ISR family offers a unique combination of features combining 90% typical efficiency with open-collector on/off control and adjustable output voltage. Quiescent current in the shutdown mode is less than 100µA.

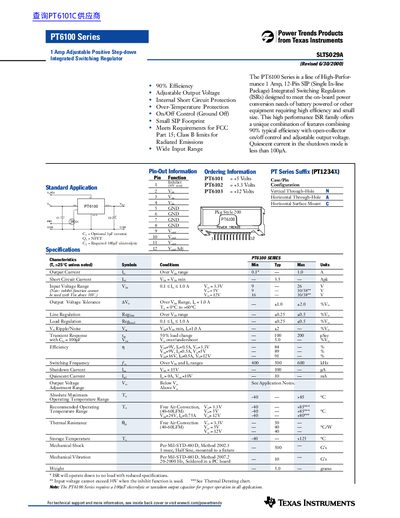

The document describes the PT6100 Series, a line of high-performance 1 Amp, 12-pin SIP (Single In-line Package) integrated switching regulators designed for battery-powered equipment requiring high efficiency and small size. Key features include typical 90% efficiency, adjustable output voltage, internal short circuit protection, over-temperature protection, and on/off control via ground.
| Output Current | 1.0 A |
|---|---|
| Efficiency (Typ) | 90% |
| Switching Frequency | 400-600 kHz |
| Operating Temperature Range | -40 to +85 °C |
The quiescent current in the shutdown mode is less than 100µA.
The PT6100 Series requires a 100µF electrolytic or tantalum output capacitor.
