The 74HC/HCT32 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT32 provide the 2-input OR function.

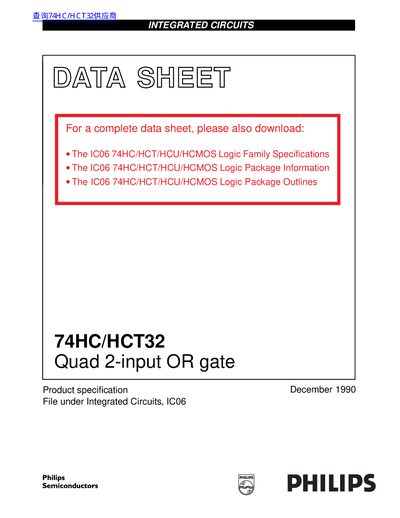

This document is a product specification datasheet for the Philips 74HC/HCT32, which are high-speed Si-gate CMOS devices providing the 2-input OR function. The device is pin compatible with low power Schottky TTL (LSTTL) and complies with JEDEC standard no. 7A.
| Operating temperature range (74HC) | -40 to +85 °C |
|---|---|
| Logic category | SSI |
The device provides the 2-input OR function.
Yes, it is pin compatible with low power Schottky TTL (LSTTL).
