The 74HC/HCT30 are high-speed Si-gate CMOS devices with standard output capability, belonging to the SSI ICC category. They comply with JEDEC standard 7A. The 74HC/HCT30 provide the 8-input NAND function.

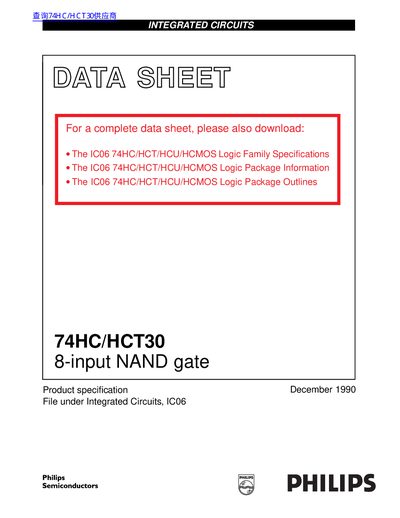

This datasheet describes the Philips 74HC/HCT30, a high-speed silicon-gate CMOS integrated circuit designed to provide an 8-input NAND function. The device is pin-compatible with low-power Schottky TTL (LSTTL) and complies with JEDEC standard no. 7A.
The document provides detailed technical information including typical propagation delay times, input capacitance, and power dissipation capacitance. It also includes pin descriptions, a functional diagram, logic symbols, and AC waveforms illustrating input-to-output propagation delays and output transition times for both HC and HCT variants.
| Input Capacitance | 3.5 pF |
|---|---|
| Output Capability | standard |
| Logic Category | SSI |
The 74HC/HCT30 provides the 8-input NAND function.
The device provides an 8-input NAND function.
