PHILIPS 74HC/HCT299 8-bit universal shift register; 3-state handbook

The 74HC/HCT299 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL).

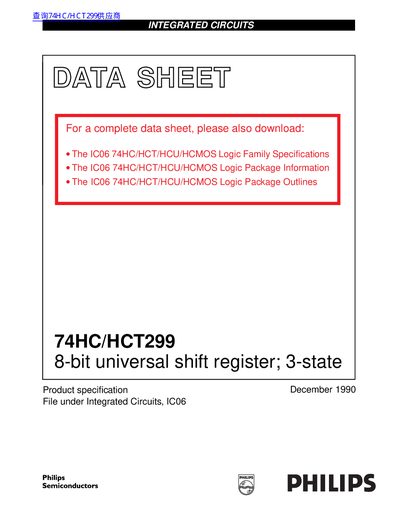

PHILIPS 74HC/HCT299 8-bit universal shift register; 3-state handbook - cover page
Brand
Philips
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
11
File format
PDF
File size
76 KB
Published
02 July, 2012
Updated
30 September, 2023
Model
74HC
MD5 checksum
D78712356D975539A1823F8CBF611D9E

About this manual

The Philips 74HC/HCT299 is a high-speed Si-gate CMOS device containing eight edge-triggered D-type flip-flops. It is pin compatible with low power Schottky TTL (LSTTL) and is specified in compliance with JEDEC standard no. 7A. The device features multiplexed inputs/outputs that provide improved bit density and can be cascaded for n-bit word lengths.

The component supports four operating modes: shift left, shift right, hold (store), and load data. It operates with output enable or at a high-impedance OFF-state (Z), allowing 3-state outputs to drive bus lines directly. The device includes asynchronous master reset and 3-state output enable inputs to control data flow and bus interfacing.

What's inside

  • Features
  • General Description
  • Quick Reference Data
  • Pin Description
  • Mode Select Table
  • DC Characteristics for 74HC
  • DC Characteristics for 74HCT
  • AC Waveforms
  • Package Outlines

Specifications

Number of Flip-FlopsEight
Operating Modesshift left, shift right, hold, load data
Output Capabilitybus driver (parallel I/Os), standard (serial outputs)
Maximum Clock Frequency (74HC)50 MHz
Input Capacitance35 pF
Output Capacitance10 pF
Power Dissipation Capacitance (74HC)120 pF
Propagation Delay (74HC)20 ns
Propagation Delay (74HCT)24 ns

Frequently asked questions

What are the four operating modes of the 74HC/HCT299?

The four operating modes are shift left, shift right, hold (store), and load data.

Is the 74HC/HCT299 pin compatible with TTL?

Yes, the device is pin compatible with low power Schottky TTL (LSTTL).

How does the asynchronous master reset function?

A LOW signal on the asynchronous master reset input (MR) overrides the S, and clock (CP) inputs and resets the flip-flops.

What happens when the 3-state output enable inputs are HIGH?

A HIGH signal on the 3-state output enable inputs disables the 3-state buffers and sets the I/O outputs to the high-impedance OFF-state.
