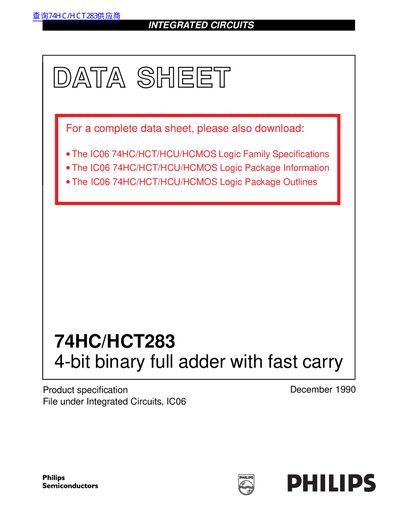

74HC/HCT283 is a high-performance 4-bit binary full adder with fast carry.
The Philips 74HC/HCT283 is a high-speed Si-gate CMOS device designed for 4-bit binary addition. It is pin compatible with low power Schottky TTL (LSTTL) and features fast internal look-ahead carry logic. The device adds two 4-bit binary words and an incoming carry, producing sum outputs and an outgoing carry.
| Input capacitance | 3.5 pF |
|---|
It is a high-speed Si-gate CMOS device.
It adds two 4-bit binary words plus an incoming carry.
