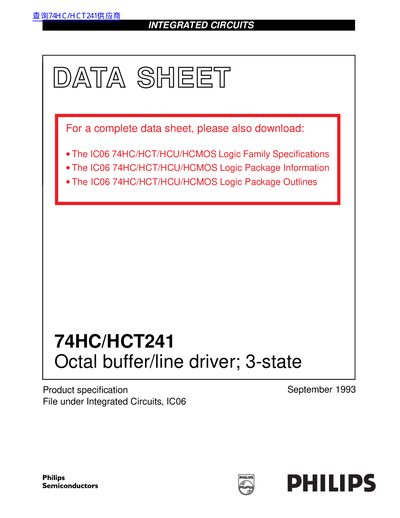

The 74HC/HCT241 is a high performance Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 74HC/HCT241 is an octal non-inverting buffer/line driver with 3-state outputs. The 3-state outputs are controlled by the output enable inputs 1OE and 2OE.
The 74HC/HCT241 are high-speed Si-gate CMOS devices designed as octal non-inverting buffers and line drivers. They feature 3-state outputs controlled by two output enable inputs (1OE and 2OE) and are pin compatible with low power Schottky TTL (LSTTL). These devices comply with JEDEC standard no. 7A.
| Output capability | bus driver |
|---|---|
| Logic category | MSI |
| Device type | high-speed Si-gate CMOS devices |
| TTL compatibility | low power Schottky TTL (LSTTL) |
| Standard compliance | JEDEC standard no. 7A |
It is an octal non-inverting buffer/line driver with 3-state outputs.
They are controlled by the output enable inputs 1OE and 2OE.
The maximum propagation delay is 33 ns under specified test conditions.
