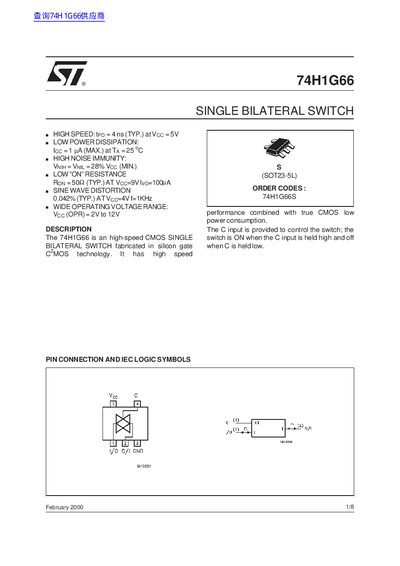

74H1G66 is a CMOS single bidirectional switch with high speed and low power consumption.
The 74H1G66 is a high-speed CMOS single bilateral switch fabricated in silicon gate CMOS technology. It features high speed with a typical propagation delay of 4 ns at 5V, low power dissipation, and high noise immunity. The device operates with a wide voltage range from 2V to 12V and includes a control input to switch the connection between two independent inputs and outputs.
| Propagation Delay (Typical) | 4 ns |
|---|---|
| Power Dissipation (Max) | 1 mW |
| On Resistance (Typical) | 508 Ω |
| Operating Voltage Range | 2V to 12V |
| Supply Voltage (Max) | 13 V |
| Operating Temperature Range | -40 to +85 °C |
| Package Type | SOT23-5L |
The C input controls the switch; it is ON when the C input is held high and OFF when C is held low.
The typical on-resistance is 508 Ω at 9V supply voltage.
