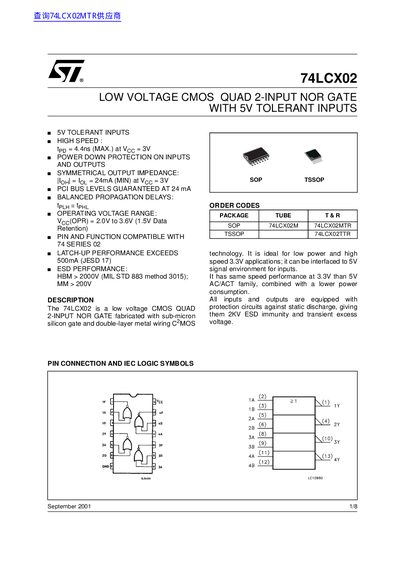

The 74LCX02 is a low voltage CMOS QUAD 2-INPUT NOR GATE fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. It is ideal for low power and high speed 3.3V applications; it can be interfaced to 5V signal environment for inputs. It has same speed performance at 3.3V than 5V AC/ACT family, combined with a lower power consumption. All inputs and outputs are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.
The 74LCX02 is a low voltage CMOS quad 2-input NOR gate fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. It is designed for low power and high speed 3.3V applications and can be interfaced to 5V signal environments for inputs. The device features power down protection on inputs and outputs, symmetrical output impedance, and balanced propagation delays.
| Operating Voltage Range | 2.0V to 3.6V |
|---|---|
| Data Retention Voltage | 1.5V |
| ESD Performance (HBM) | > 2000V |
| Latch-Up Performance | Exceeds 500mA |
| Operating Temperature Range | -55 to 125 °C |
The recommended operating voltage range is 2.0V to 3.6V.
Yes, the device has 5V tolerant inputs allowing it to be interfaced to 5V signal environments.
