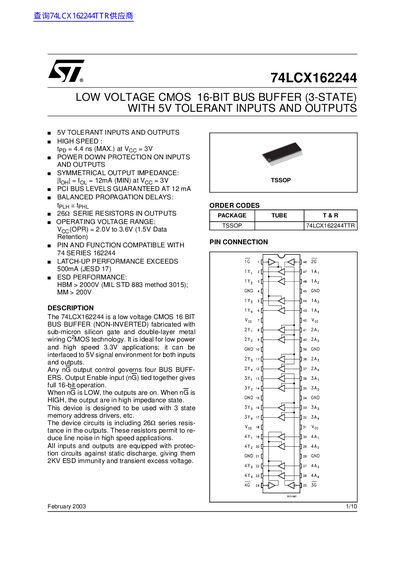

The 74LCX162244 is a low voltage CMOS 16-bit bus buffer (non-inverted) fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. It is ideal for low power and high-speed 3.3V applications; it can be interfaced to 5V signal environment for both inputs and outputs. Any nG output control governs four bus buffers. Output enable input (nG) tied together gives full 16-bit operation. When nG is low, the outputs are on. When nG is high, the outputs are in a high impedance state. This device is designed to be used with 3-state memory address drivers, etc. The device circuit includes 26Ω series resistance in the outputs. These resistors permit to reduce line noise in high-speed applications. All inputs and outputs are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.
The 74LCX162244 is a low voltage CMOS 16-bit bus buffer (non-inverted) fabricated with sub-micron silicon gate and double-layer metal CMOS technology. It is designed for low power and high speed 3.3V applications while maintaining compatibility with 5V signal environments for both inputs and outputs.
The device features 26Ω series resistors in the outputs to reduce line noise in high speed applications and includes protection circuits against static discharge, providing 2KV ESD immunity. It is pin and function compatible with the 74 series 162244.
| Operating Voltage Range | 2.0V to 3.6V |
|---|---|
| ESD Performance (HBM) | > 2000V |
| Operating Temperature | -55 to 125 °C |
| Input Capacitance | 4 pF |
The recommended operating voltage range is 2.0V to 3.6V.
Yes, it has 5V tolerant inputs and outputs.
