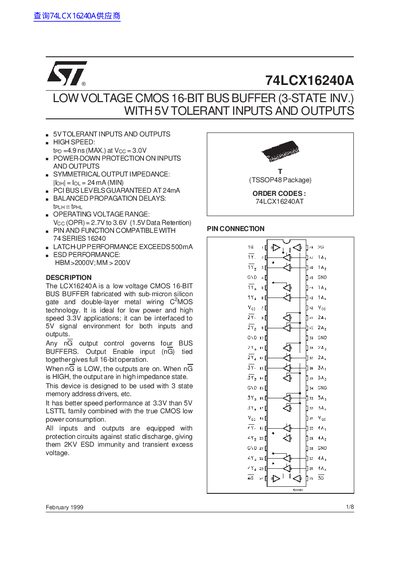

The LCX16240A is a low voltage CMOS 16-BIT BUS BUFFER fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. It is ideal for low power and high speed 3.3V applications; it can be interfaced to 5V signal environment for both inputs and outputs.
The 74LCX16240A is a low voltage CMOS 16-bit bus buffer fabricated with sub-micron silicon gate and double-layer metal wiring CMOS technology. It is designed for low power and high speed 3.3V applications while being interfaced to 5V signal environments for both inputs and outputs. The device features output enable inputs that govern four bus buffers, allowing full 16-bit operation when tied together.
| Operating Voltage Range | 2.7V to 3.6V |
|---|---|
| Data Retention Voltage | 1.5V |
| Propagation Delay (Max) | 4.9 ns |
| Output Source/Sink Current (Min) | 24 mA |
| ESD Performance (HBM) | >2000V |
| ESD Performance (MM) | >200V |
| Operating Temperature | -40 to +85 °C |
| Package Type | TSSOP48 |
The operating voltage range is 2.7V to 3.6V.
Yes, it can be interfaced to 5V signal environment for both inputs and outputs.
The maximum propagation delay is 4.9 ns at Voc = 3.0V.
