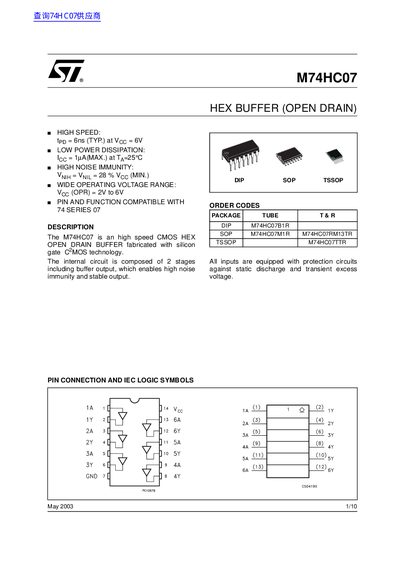

The document describes the features and characteristics of the M74HC07, a high-speed CMOS hex open-drain buffer. It includes high-speed transmission, low power consumption, high noise immunity, and wide operating voltage range.
The M74HC07 is a high-speed CMOS hex open drain buffer fabricated with silicon gate CMOS technology. It features high noise immunity and stable output due to a two-stage internal circuit including a buffer output. The device is pin and function compatible with the 74 series 07 and operates over a wide voltage range of 2V to 6V.
| Operating Voltage Range | 2V to 6V |
|---|---|
| Supply Voltage | -0.5 to +7 V |
| Operating Temperature | -55 to +125 °C |
| Output Transition Time (Typ) | 6ns |
| Power Dissipation (Max) | 1mW |
| Output Current (Max) | +25 mA |
The device operates with a supply voltage between 2V and 6V.
Yes, it is pin and function compatible with the 74 series 07.
The typical output transition time is 6ns at Voc = 5V.
