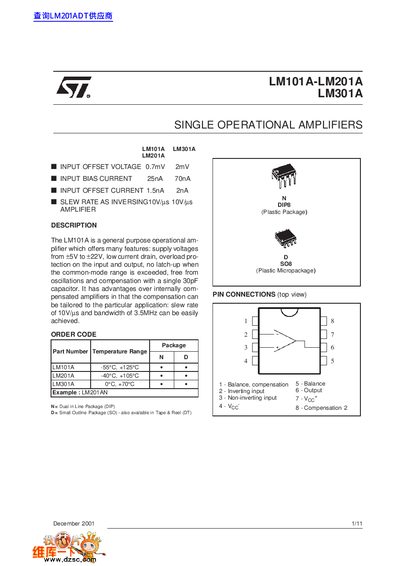

STMicroelectronics LM101A/LM201A/LM301A Single Operational Amplifiers Datasheet

The LM101A is a general purpose operational amplifier with features such as low current drain, overload protection, etc., making it suitable for various applications.

Brand: STMicroelectronics
Document type: Datasheet
Language: English
Pages: 11
File format: PDF
File size: 171 KB
Published: 04 July, 2012
Updated: 29 September, 2023
Models: LM101A, LM201A, LM301A
MD5 checksum: 7A3E67DE7F0F5C208EDB6A49C51DD969
PDF: STMicroelectronics LM101A/LM201A/LM301A Single Operational Amplifiers Datasheet PDF

About this manual

This document provides technical specifications for the LM101A, LM201A, and LM301A series of single operational amplifiers. Key features include supply voltages from +5V to +22V, low current drain, overload protection on input and output, and compensation with a single 30pF capacitor.

What's inside

Description
Pin Connections
Absolute Maximum Ratings
Electrical Characteristics
Frequency Response
Basic Diagrams
Typical Applications
Package Mechanical Data

Specifications

Input Offset Voltage (LM101A)	0.7mV Typ.
Supply Voltage Range	+5V to +22V

Frequently asked questions

What is the operating temperature range for the LM101A?

The operating free-air temperature range for the LM101A is -55°C to +125°C.

What capacitance value is required to achieve a slew rate of 10V/us?

The amplifier requires compensation with a single 30pF capacitor to easily achieve this performance.
