LM217M/LM317M are bipolar adjustable voltage regulators that can be adjusted over a range of 1.2 to 37 volts. The output current is 500 mA, the load regulation accuracy is 0.1% and the line regulation accuracy is 0.01%. LM217M/LM317M features over-temperature protection, short circuit protection and output transistor safe area compensation.

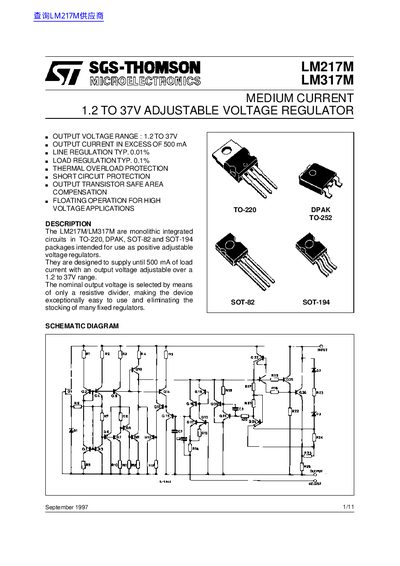

The LM217M and LM317M are monolithic integrated circuits designed as positive adjustable voltage regulators. They supply up to 500 mA of load current with an output voltage adjustable from 1.2 V to 37 V, selected by a resistive divider. The devices feature thermal overload and short-circuit protection and are available in TO-220, DPAK, SOT-82, and SOT-194 packages.
| Output Voltage Range | 1.2 to 37V |
|---|---|
| Maximum Output Current | 500 mA |
The minimum load current is 3.5 mA when the input-output differential voltage is 40V.
No, re-boot is not guaranteed if the junction temperature exceeds 85 °C.
