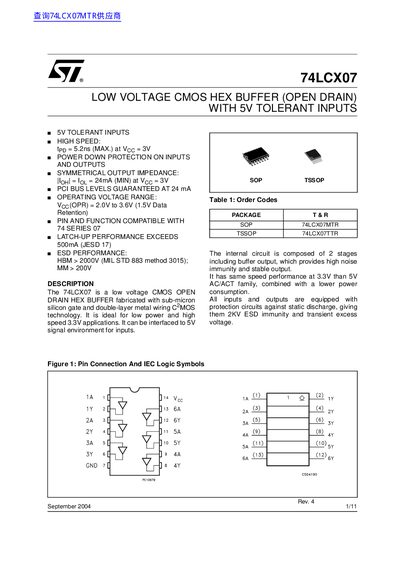

The document describes the 74LCX07, a low voltage CMOS open drain hex buffer fabricated with sub-micron silicon gate technology. It is designed for high-speed 3.3V applications while maintaining compatibility with 5V signal environments at the input stage.
Key features include symmetrical output impedance of 24mA minimum, power down protection on inputs and outputs, and guaranteed PCI bus levels. The device operates over a voltage range of 2.0V to 3.6V (with data retention down to 1.5V) and offers high noise immunity.
| Operating Voltage Range | 2.0V to 3.6V (1.5V Data Retention) |
|---|---|
| Propagation Delay | 5.2ns MAX at Veg = 3V |
| Output Impedance | 24mA MIN at Veg = 3V |
| ESD Performance HBM | > 2000V |
| Operating Temperature Range | -55 to +125 °C |
Yes, it is pin and function compatible with the 74 Series 07.
The device is available in SOP and TSSOP packages.
Yes, all inputs and outputs are equipped with protection circuits giving them 2KV ESD immunity.
