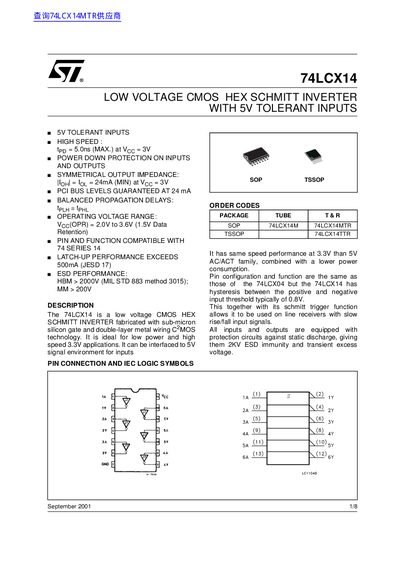

The 74LCX14 is a low voltage CMOS HEX SCHMITT INVERTER fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. It is ideal for low power and high speed 3.3V applications. It can be interfaced to 5V signal environment for inputs It has same speed performance at 3.3V than 5V AC/ACT family, combined with a lower power consumption. Pin configuration and function are the same as those of the 74LCX04 but the 74LCX14 has hysteresis between the positive and negative input threshold typically of 0.8V. This together with its schmitt trigger function allows it to be used on line receivers with slow rise/fall input signals. All inputs and outputs are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.
The 74LCX14 is a low voltage CMOS hex Schmitt inverter fabricated with sub-micron silicon gate and double-layer metal wiring CMOS technology. It is ideal for low power and high speed 3.3V applications and can be interfaced to 5V signal environments for inputs. The device features power-down protection on inputs and outputs, symmetrical output impedance, and balanced propagation delays.
| Operating Voltage Range | 2.0V to 3.6V |
|---|---|
| Propagation Delay (Max) | 5.0ns |
| Output Current (Min) | 24mA |
| Operating Temperature Range | -55 to 125 °C |
| Negative Input Threshold (Typ) | 1.5V |
| Input Capacitance | 6 pF |
The recommended operating voltage range is 2.0V to 3.6V.
Yes, it has 5V tolerant inputs allowing it to be interfaced to 5V signal environments.
The maximum propagation delay is 5.0ns at Voc = 3V.
