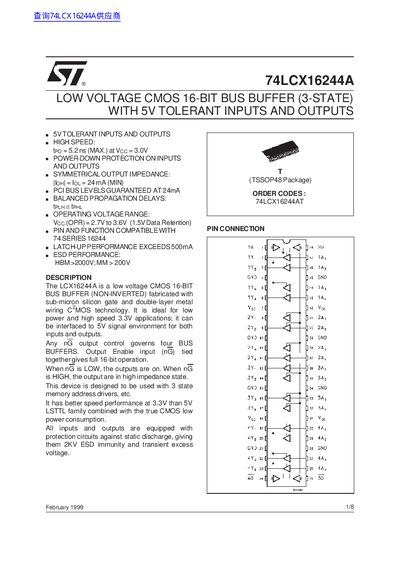

The LCX16244A is a low voltage CMOS 16-bit bus buffer (non-inverted) fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. It is ideal for low power and high speed 3.3V applications; it can be interfaced to 5V signal environment for both inputs and outputs.
The document describes the 74LCX16244A, a low voltage CMOS 16-bit bus buffer (non-inverted) fabricated with sub-micron silicon gate technology. It is designed for high-speed 3.3V applications while maintaining compatibility with 5V signal environments for both inputs and outputs.
The device features symmetrical output impedance, power-down protection on inputs and outputs, and latch-up performance exceeding 500mA. All inputs and outputs are equipped with protection circuits against static discharge, providing 2KV ESD immunity.
| Operating Voltage Range | 2.7V to 3.6V |
|---|---|
| Data Retention Voltage | 1.5V |
| Propagation Delay (Max) | 5.2 ns |
| ESD Performance (HBM) | >2000V |
| Supply Voltage (Operating) | 2.0 to 3.6 V |
The recommended operating supply voltage range is from 2.0V to 3.6V.
The maximum propagation delay (tpp) is 5.2 ns when Vcc is 3.0V.
