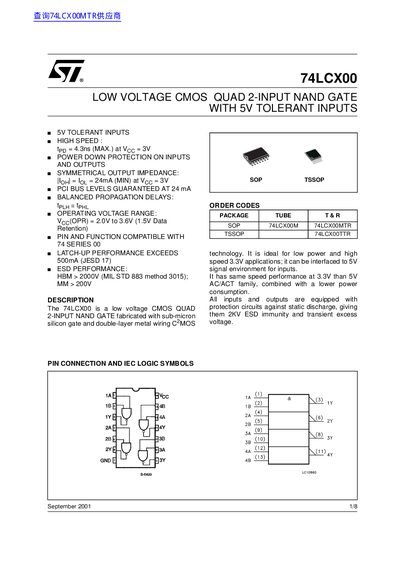

The 74LCX00 is a low voltage CMOS QUAD 2-INPUT NAND GATE with 5V TOLERANT INPUTS, ideal for low power and high speed 3.3V applications.
The 74LCX00 is a low voltage CMOS quad 2-input NAND gate fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. It is designed for low power and high speed 3.3V applications and can be interfaced to 5V signal environments for inputs. The device features power down protection on inputs and outputs, symmetrical output impedance, and balanced propagation delays.
| Operating Voltage Range | 2.0V to 3.6V |
|---|---|
| Data Retention Voltage | 1.5V |
| ESD Performance (HBM) | > 2000V |
| Latch-Up Performance | 500mA |
| Operating Temperature | -55 to 125 °C |
The recommended operating voltage range is 2.0V to 3.6V.
Yes, the device is designed with 5V tolerant inputs.
