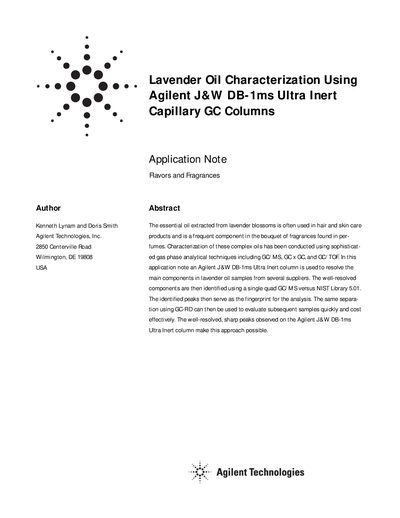

This article introduces the characterization of lavender oil using Agilent J&W DB-1ms Ultra Inert capillary GC columns. Gas phase analytical techniques including GC/MS, GC x GC, and GC/TOF were used to analyze the main components in lavender oil samples from several suppliers. The well-resolved components were then identified using a single quad GC/MS versus NIST Library 5.01, and the identified peaks served as the fingerprint for analysis. The same separation using GC-FID could be used to evaluate subsequent samples quickly and cost effectively. The well-resolved, sharp peaks observed on the Agilent J&W DB-1ms Ultra Inert column made this approach possible.
This document describes an application using Agilent J&W DB-1ms Ultra Inert capillary GC columns to characterize lavender oil samples from different suppliers. The study utilizes gas chromatography coupled with mass spectrometry (GC-MS) and flame ionization detection (GC-FID) to identify and quantify major components in the essential oil.
| Column Dimensions | 30 m x 0.25 mm x 0.25 um |
|---|---|
| Column Part Number | 122-0132UI |
| Carrier Gas | Helium |
| Inlet Split Ratio | 200:1 |
| MSD Source Temperature | 300 °C |
| Quadrupole Temperature | 180 °C |
| Transfer Line Temperature | 280 °C |
| Scan Range | 45-450 amu |
The Agilent J&W DB-1ms Ultra Inert column is used to resolve main components in lavender oil samples.
The NIST 5.01 Mass Spectral Library was used for spectral comparison and identification of the identified peaks.
