DSC-4608/2 is an 8-bit high-speed register with dual two-level or single four-level push-only stack operation. All registers are available at multiplexed output. Provides temporary address or data storage.

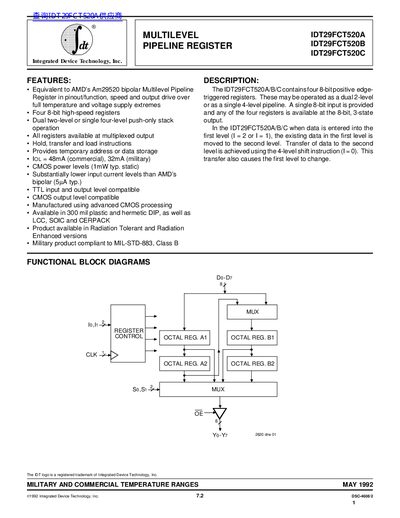

The IDT29FCT520A/B/C is a CMOS device containing four 8-bit positive edge-triggered registers. These registers can be operated as a dual 2-level pipeline or a single 4-level pipeline, providing temporary address or data storage with TTL input and output level compatibility.
| Number of Registers | Four 8-bit registers |
|---|---|
| Power Dissipation | 0.5 W |
| DC Output Current | 120 mA |
The device is available for commercial use from 0°C to +70°C and military use from -55°C to +125°C.
The registers may be operated as a dual 2-level pipeline or a single 4-level pipeline.
