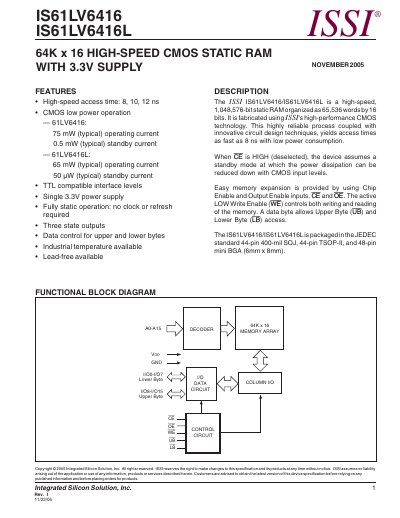

IS61LV6416/IS61LV6416L is a high-performance static RAM chip produced by ISSI company. It has the characteristics of high speed and low power consumption.
The IS61LV6416 and IS61LV6416L are high‑speed static RAM devices with a total capacity of 1,048,576 bits organized as 65,536 words × 16 bits. They are fabricated in ISSI's high‑performance CMOS process and operate from a single 3.3 V supply.
The devices are supplied in several JEDEC‑standard packages (44‑pin SOJ, 44‑pin TSOP‑II, 48‑pin mini‑BGA) and are rated for commercial (0 °C to +70 °C) and industrial (‑40 °C to +85 °C) temperature ranges. Detailed electrical characteristics, timing diagrams and packaging dimensions are provided in the specification.
| Access time | 8 ns (typical) |
|---|---|
| Operating current (61LV6416) | 75 mW typical |
| Standby current (61LV6416) | 0.5 mW typical |
| Operating current (61LV6416L) | 65 mW typical |
| Standby current (61LV6416L) | 50 µW typical |
| Supply voltage | 3.3 V (single) |
| Package options | 44‑pin SOJ, 44‑pin TSOP‑II, 48‑pin mini BGA |
| Memory organization | 1,048,576 bits (65,536 words × 16 bits) |
The typical access time is 8 ns.
It operates from a single 3.3 V power supply.
It is offered in 44‑pin SOJ, 44‑pin TSOP‑II, and 48‑pin mini BGA packages.
