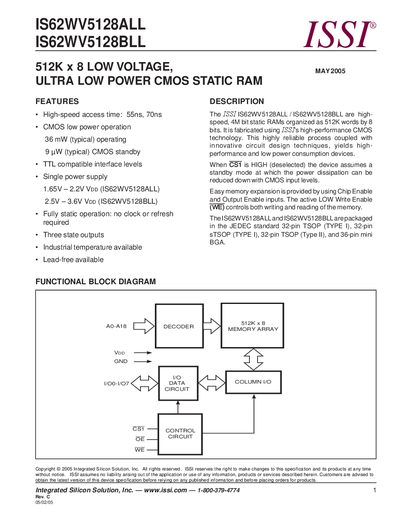

IS62WV5128ALL/IS62WV5128BLL are high-performance CMOS static RAMs with high speed, low power, three-state outputs, industrial temperature and lead-free.
The IS62WV5128ALL and IS62WV5128BLL are 512 K × 8 ultra‑low‑power CMOS static RAM devices offering high‑speed access times of 55 ns and 70 ns respectively. They operate from a single supply voltage (1.65‑2.2 V for the ALL version, 2.5‑3.6 V for the BLL version) and feature a standby power consumption as low as 9 pW.
The devices are available in multiple package types, including 32‑pin TSOP, 32‑pin sTSOP, and 36‑pin mini‑BGA, and support both commercial (0 °C to +70 °C) and industrial (‑40 °C to +85 °C) temperature ranges. Detailed electrical characteristics, timing diagrams, and packaging dimensions are provided in the following sections.
| Memory Capacity | 512 K × 8 bits |
|---|---|
| Access Time | 55 ns (ALL), 70 ns (BLL) |
| Standby Power | 9 pW typical |
| Supply Voltage (ALL) | 1.65 V – 2.2 V |
| Supply Voltage (BLL) | 2.5 V – 3.6 V |
| Operating Temperature (Commercial) | 0 °C to +70 °C |
| Operating Temperature (Industrial) | ‑40 °C to +85 °C |
| Power Dissipation | 1.0 W |
| Output Capacitance | 10 pF |
The IS62WV5128ALL has a typical access time of 55 ns, while the IS62WV5128BLL has a typical access time of 70 ns.
The standby power consumption is as low as 9 pW typical.
