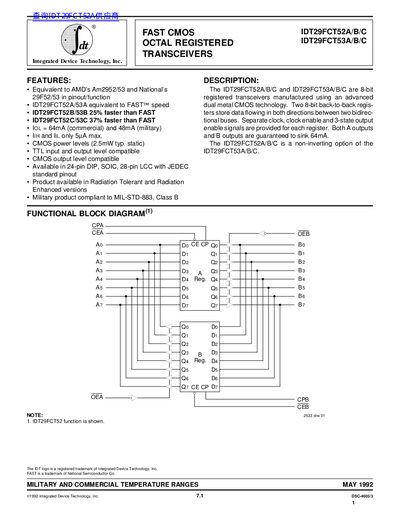

Integrated Device Technology IDT29FCT52A/B/C, IDT29FCT53A/B/C Datasheet

About this manual

This document is a datasheet for the IDT29FCT52A/B/C and IDT29FCT53A/B/C series of FAST CMOS octal registered transceivers. These devices are manufactured using advanced dual metal CMOS technology and are equivalent to AMD's Am2952/53 and National's 29F 52/53 in pinout and function. They are available in commercial and military temperature ranges and come in 24-pin DIP, SOIC, and 28-pin LCC packages.

What's inside

• Features
• Functional Block Diagram
• Pin Configurations
• Pin Description
• Register Function Table
• Absolute Maximum Ratings
• DC Electrical Characteristics
• Power Supply Characteristics
• Switching Characteristics
• Ordering Information

Frequently asked questions

What are the available packages for these transceivers?

They are available in 24-pin DIP, SOIC, and 28-pin LCC packages.

Are these devices compatible with TTL levels?

Yes, they have TTL input and output level compatibility.
