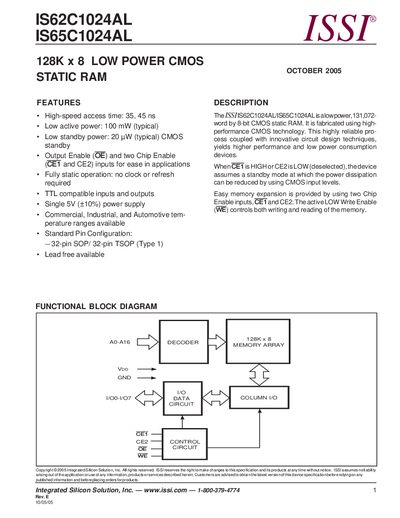

The ISSI IS62C1024AL/IS65C1024AL is a low power, 131,072-word by 8-bit CMOS static RAM. It is fabricated using high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques yields higher performance and low power consumption devices. Memory expansion is made easy by using two Chip Enable inputs, CE1 and CE2. Power dissipation can be reduced by using CMOS input levels in standby mode. The features include high-speed access time of 35, 45 ns, low active power of 100 mW (typical), low standby power of 20 µW (typical) CMOS standby, Output Enable (OE) and two Chip Enable (CE1 and CE2) inputs for ease in applications, and fully static operation.
The IS62C1024AL and IS65C1024AL are 128 K × 8 low‑power CMOS static RAM devices from Integrated Silicon Solution. They feature high‑speed access times of 35 ns typical (45 ns max), low active power consumption (100 mW typical) and ultra‑low standby power (20 µW typical). The devices operate from a single 5 V supply and are available in commercial, industrial, and automotive temperature ranges.
The datasheet details pin configurations for 32‑pin SOP and TSOP packages, absolute maximum ratings, capacitance values, DC electrical characteristics, timing diagrams for read and write cycles, data‑retention behavior, and mechanical packaging dimensions. It serves as a reference for designers integrating these static RAM chips into their systems.
| Access Time | 35 ns typical, 45 ns max |
|---|---|
| Active Power Consumption | 100 mW typical |
| Standby Power Consumption | 20 µW typical |
| Supply Voltage | 5 V ±10 % |
| Temperature Range (Commercial) | 0 °C to +70 °C |
| Temperature Range (Industrial) | -40 °C to +85 °C |
| Temperature Range (Automotive) | -40 °C to +125 °C |
| Package Type | 32‑pin SOP / 32‑pin TSOP (Type 1) |
The access time is 35 ns typical and 45 ns maximum.
It operates from a single 5 V supply with a ±10 % tolerance.
The device is offered in a 32‑pin SOP package and a 32‑pin TSOP (Type 1) package.
