This is a 128k x 8 bit high performance static cmos storage

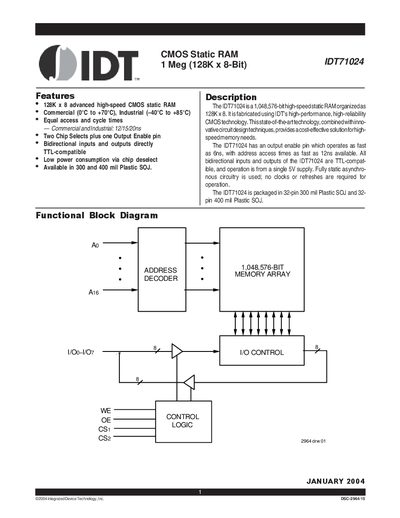

The IDT71024 CMOS static RAM provides 128K × 8‑bit (1 Meg) memory organized in a high‑speed static architecture. It is available in 300‑mil and 400‑mil Plastic SOJ packages and operates over commercial (0 °C to +70 °C) and industrial (‑40 °C to +85 °C) temperature ranges.
Key electrical characteristics include a 5.0 V supply (±10%), input and output leakage currents of ≤5 pA, and power dissipation of 1.25 W. Access times range from 12 ns to 20 ns depending on speed grade, with read and write cycle times matching these specifications. The datasheet also details pin configurations, timing waveforms for read/write cycles, ordering information, and document revision history.
| Memory capacity | 128K × 8 bits (1 Meg) |
|---|---|
| Commercial temperature range | 0 °C to +70 °C |
| Industrial temperature range | -40 °C to +85 °C |
| Supply voltage | 5.0 V ±10% |
| Power dissipation | 1.25 W |
| Address access time (TAA) | 12 ns – 20 ns |
| Output Enable to Output Valid (tOE) | 6 ns – 8 ns |
It operates in a commercial range of 0 °C to +70 °C and an industrial range of –40 °C to +85 °C.
The device requires a 5.0 V supply with a ±10 % tolerance.
Address access times are 12 ns for the commercial grade, 15 ns for the industrial grade, and up to 20 ns for the fastest speed grade.
