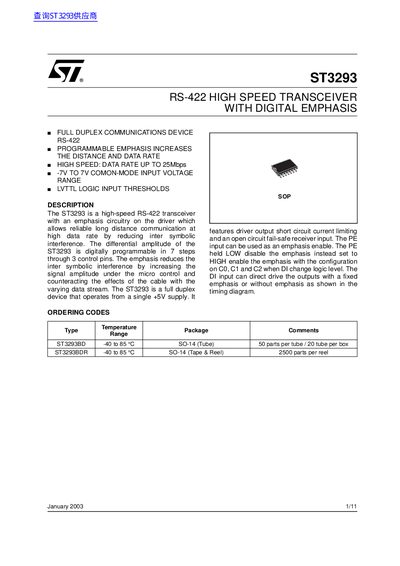

ST3293 is a high-speed RS-422 transceiver from STMicroelectronics. It supports data rates up to 25Mbps and features a digitally programmable voltage amplifier. The device also supports short circuit current limiting and open circuit fault protection.
The ST3293 is a high-speed RS-422 transceiver featuring an emphasis circuitry on the driver. This design allows for reliable long-distance communication at high data rates by reducing inter-symbolic interference. The differential amplitude of the device is digitally programmable in seven steps through three control pins, and it operates from a single +5V supply.
| Data Rate | Up to 25 Mbps |
|---|---|
| Supply Voltage | +5V (4.75V to 5.25V) |
| Common-Mode Input Range | -7V to +7V |
| Operating Temperature (Industrial) | -40°C to +85°C |
| Storage Temperature | -65°C to +150°C |
| Differential Output Voltage (No Load) | 2 Vcc |
The device supports a high-speed data rate up to 25 Mbps.
The differential amplitude is digitally programmable in seven steps through three control pins (C0, C1, C2).
The device features LVTTL logic input thresholds.
