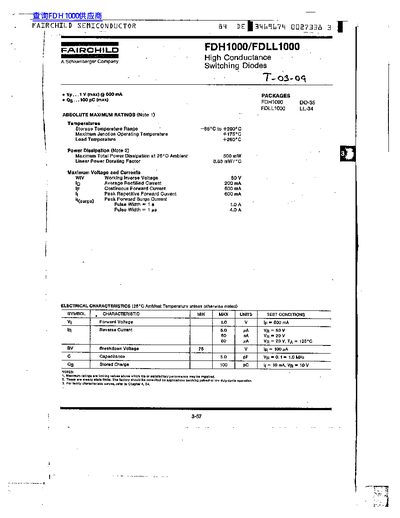

The document is a technical specification sheet for the FDH1000 (DO-35 package) and FDLL1000 (LL-34 package) High Conductance Switching Diodes manufactured by Fairchild Semiconductor, a Schlumberger Company. It lists absolute maximum ratings including storage temperature ranges from -65°C to +200°C and junction operating temperatures up to +175°C.
The datasheet details electrical characteristics measured at 25°C ambient temperature, such as forward voltage (minimum 1.0V), reverse current limits, breakdown voltage of 75V, and capacitance of 6.0 pF. It also specifies package types and notes regarding power dissipation derating.
| Storage Temperature Range | -65°C to +200°C |
|---|---|
| Linear Power Derating Factor | 3.33 mW/°C |
| Forward Voltage | Minimum 1.0 V |
| Breakdown Voltage | 75 V |
| Capacitance | 6.0 pF |
Storage temperatures range from -65°C to +200°C, with a maximum junction operating temperature of +175°C.
