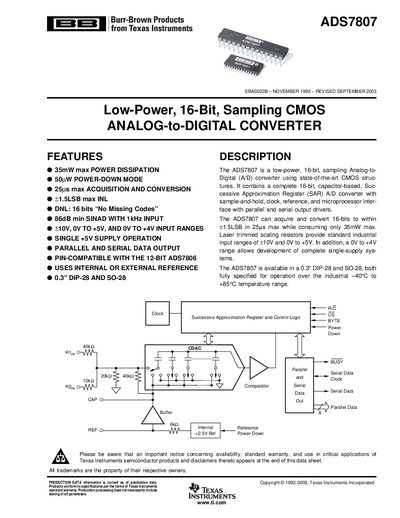

The ADS7807 is a low-power, 16-bit, sampling Analog-to-Digital (A/D) converter with features such as 35mW maximum power dissipation, 50µW power-down mode, 25µs maximum acquisition and conversion time, ±1.5LSB maximum INL, 16-bit DNL with no missing codes, 86dB minimum SINAD with 1kHz input, ±10V, 0V to +5V, and 0V to +4V input ranges, single +5V supply operation, parallel and serial data output, pin-compatible with the 12-bit ADS7806, and the ability to use internal or external reference.
The ADS7807 is a low-power, 16-bit, sampling Analog-to-Digital (A/D) converter using state-of-the-art CMOS structures. It contains a complete 16-bit, capacitor-based, Successive Approximation Register (SAR) A/D converter with sample-and-hold, clock, reference, and microprocessor interface with parallel and serial output drivers.
The device is available in a 0.3" DIP-28 and SO-28 package, fully specified for operation over the industrial -40°C to +85°C temperature range.
| Resolution | 16 Bits |
|---|---|
| Power Dissipation (Max) | 35 mW |
| Conversion Time | 20 us |
| Integral Linearity Error (Max) | +1.5 LSB |
| Temperature Range | -40°C to +85°C |
The device has a maximum power dissipation of 35mW.
The device can acquire and convert in a maximum of 25us.
The specified input ranges are +10V, 0V to +5V, and 0V to +4V.
