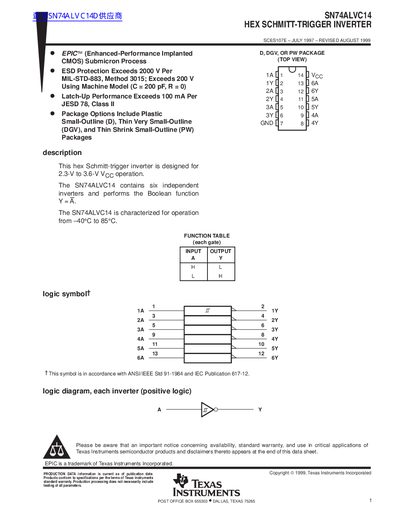

The SN74ALVC14 is a six-way Schmitt trigger inverter produced by Texas Instruments. It operates at a voltage of 2.3V to 3.6V and a temperature of -40℃ to 85℃.
The SN74ALVC14 is a hex Schmitt-trigger inverter designed for 2.3-V to 3.6-V operation. It contains six independent inverters that perform the Boolean function Y=A. The device is characterized for operation from -40°C to 85°C and is available in D, DGV, and PW packages.
The datasheet provides absolute maximum ratings, recommended operating conditions, and electrical characteristics. Key parameters include positive-going and negative-going voltage thresholds, hysteresis, and propagation delay times. The document also includes timing diagrams and measurement information for setup, hold, and propagation delay times.
| Operating temperature range | -40°C to 85°C |
|---|---|
| Number of inverters | Six |
| Hysteresis (VCC=3V) | 0.3 V |
The SN74ALVC14 contains six independent inverters.
The device is characterized for operation from -40°C to 85°C.
