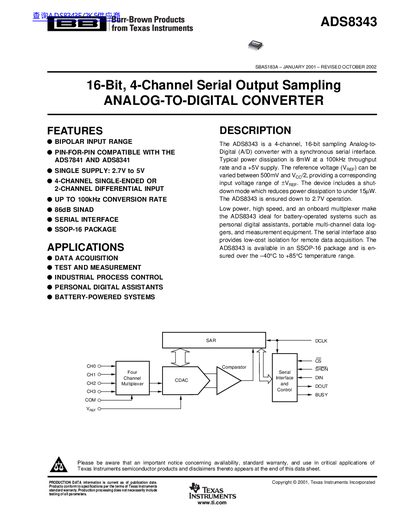

The ADS8343 is a 16-bit, 4-channel serial output sampling analog-to-digital converter with features such as bipolar input range, pin-for-pin compatibility with the ADS7841 and ADS8341, single supply operation from 2.7V to 5V, 4-channel single-ended or 2-channel differential input, up to 100kHz conversion rate, 86dB SINAD, and a serial interface.
The ADS8343 is a low-power, high-speed Analog-to-Digital Converter (ADC) featuring a synchronous serial interface. It supports up to 100kHz conversion rates and offers an onboard multiplexer for 4 single-ended or 2 differential input channels.
Designed for battery-powered systems such as personal digital assistants and portable data loggers, the device operates with a single supply voltage ranging from 2.7V to 5V. It includes a shutdown mode to reduce power dissipation significantly and is available in an SSOP-16 package.
| Resolution | 16 Bits |
|---|---|
| Throughput Rate | Up to 100 kHz |
| Supply Voltage Range | 2.7V to 5V |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | SSOP-16 |
The device supports a throughput rate of up to 100 kHz.
It is a 4-channel converter that supports single-ended or differential inputs.
The device is available in an SSOP-16 package.
