SCBS682G is an octal buffer/driver with support for mixed-mode signal operation. It supports 5V input and output voltages as well as a 3.3V VCC voltage. It features low output ground bounce, support for unregulated battery operation, power-up 3-state support hot insertion, bus hold on data inputs, and more.

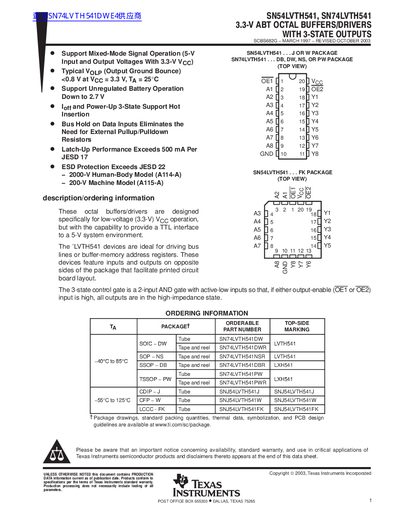

The SN54LVTH541 and SN74LVTH541 are 3.3-V ABT octal buffers/drivers featuring 3-state outputs designed specifically for low-voltage operation. They support mixed-mode signal operation, allowing input and output voltages to be 3.3 V while interfacing with a 5-V system environment. These devices are ideal for driving bus lines or buffering memory address registers and feature inputs and outputs on opposite sides of the package to facilitate printed circuit board layout.
| High-level input voltage | 2 V |
|---|---|
| Low-level input voltage | 0.8 V |
| Operating temperature range | -55°C to 125°C |
| High-level output current | -24 mA |
The minimum high-level input voltage is 2 V.
