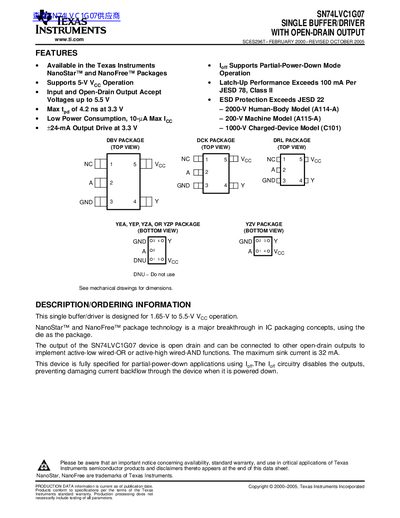

The SN74LVC1G07 is a single buffer/driver from TI with open drain output. It supports 1.65-V to 5.5-V VCC operation and has a maximum sink current of 32 mA. It can be used in partial power down applications.
The SN74LVC1G07 is a single buffer/driver designed for operation with a supply voltage (VCC) ranging from 1.65 V to 5.5 V. It features an open-drain output capable of sinking up to 32 mA, allowing for the implementation of active-low wired-OR or active-high wired-AND functions when connected to other open-drain outputs. The device supports partial-power-down mode to prevent damaging current backflow when powered down.
Available in various NanoStar and NanoFree packages, including WCSP (DSBGA) and SOT-23/SOT-23-5/SOT-23-6 variants, the chip offers low power consumption and high-speed switching. Key electrical characteristics include a maximum input clamp current of 50 mA and a maximum output drive of 24 mA at 3.3 V. The device is fully specified for operating temperatures between -40°C and 85°C.
| Maximum Sink Current | 32 mA |
|---|---|
| Operating Temperature Range | -40°C to 85°C |
| Output Drive at 3.3 V | 24 mA |
Yes, the open-drain output can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions.
The device supports a supply voltage range of -0.5 V to 6.5 V under absolute maximum ratings.
The device operates over a free-air temperature range of -40°C to 85°C.
